Wireless Liquid Alarm Model 110

Monitor water levels in cisterns, sumps, septic systems, holding tanks, pump chambers, trucks, water treatment plants or storage tanks. Alarm a HIGH or LOW level condition. Control equipment with the optional relay. Installation is as simple as suspending the probe at the desired alarm level

​

Monitor water level in pump chambers, cisterns, holding tanks, sumps, floor drains or truck tanks. The indoor alarm will warn of a threatening level condition.

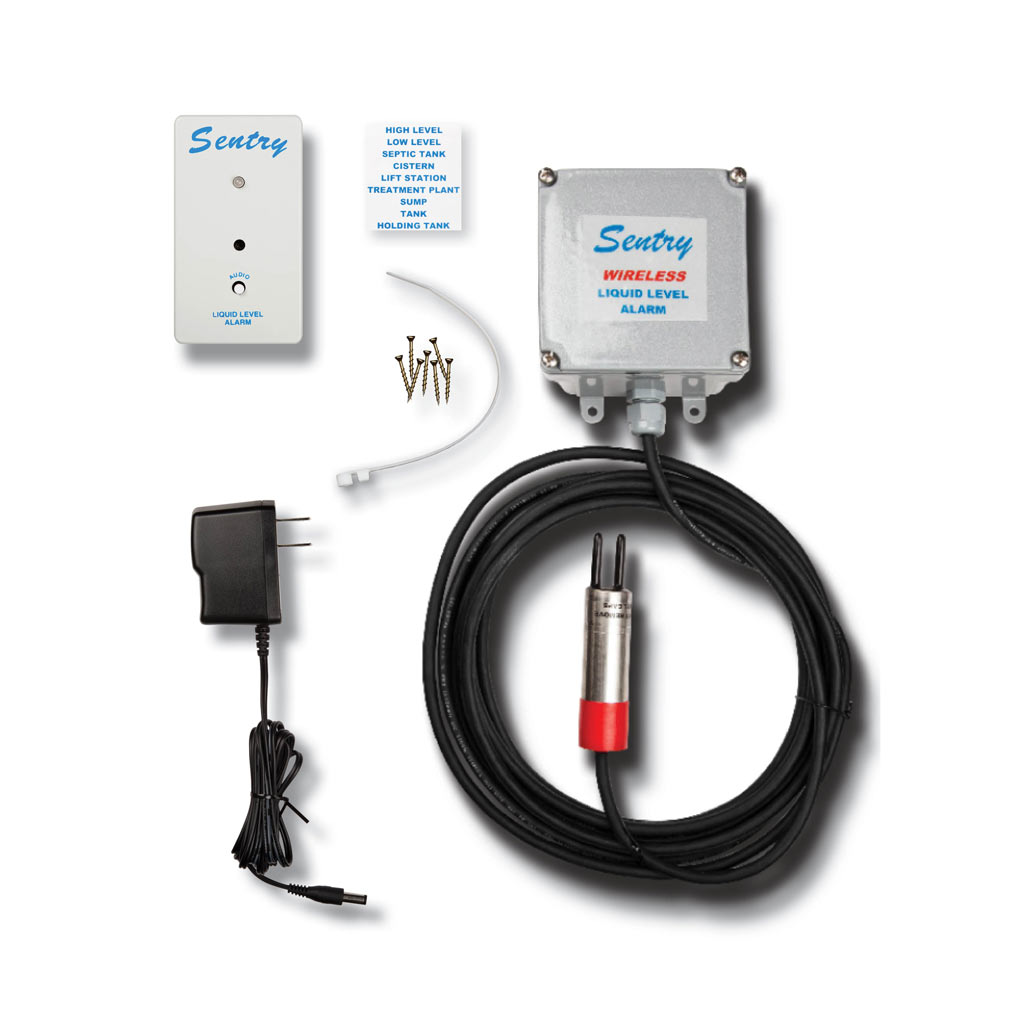

Features

  • Outdoor NEMA 6P enclosure battery powered, 5m (16’) digital RF probe
  • HIGH or LOW function selectable
  • Wireless range 90m (300 feet)
  • Indoor alarm display with auto reset audible alarm
  • Continual self-test that probe and wireless radios functioning correctly
  • Low battery warning
  • Accuracy of probe best in industry +/- 3mm (1/8”)
  • Custom probe cable lengths available
Power Supply 120VAC, 60 Hz, UL listed and CSA certified, adapting to 12 VDC (indoor unit)
Battery Life 3 years; four AA batteries (outdoor unit)
Weather Rating -40°C to 85°C rating on outdoor wireless
Solid State Transducer 85db @ 10 cm
Relay (optional) form C dry contacts, 2 amp @ 30V DC normally open
Probe stainless steel, type 304, 25.4mm diameter x 95mm long, 2 conductor, 18ga, SJOOW jacket, 5m cable length standard
